Underground Light

YH-D111616

Lamp body

ADC12 high-strength die-casting aluminum lamp body, the surface is sprayed with outdoor sand grain weather-resistant imported powder


lens

PMMA optical lens, light transmittance up to 90%


Transparent material

Ultra-white 8mm tempered glass


Sealed structure

Structure waterproof or non-vulcanized colloid potting waterproof


Light Engine

Original brand imported light source, optional Osram, Cree, Philips, etc.


Ambient temperature

-20℃~45℃


Frame

High-strength special aluminum


Electric wire

Corrosion resistant rubber wire 2X1mm², 3X1mm², 2X1+3X0.5mm²


Work style

Switch is always on, DMX512, Triac, PWM, 1-10V


Contact us

Product Details

Humanized design

deep hidden design of the light source to minimize glare interference

Light and utility

professional light distribution scheme design, ultra-white high-transmittance tempered glass

The material is the basis

the lamp body is made of ADC12 high-strength die-cast aluminum, 316L stainless steel face ring with extremely high corrosion resistance, and high-strength installation embedded parts are provided

Special surface spraying

The American tiger powder baking paint spraying process is used to effectively improve the performance of acid and alkali resistance

Heat dissipation and life

Integrated heat dissipation design can balance the life of the lamp in a complex environment

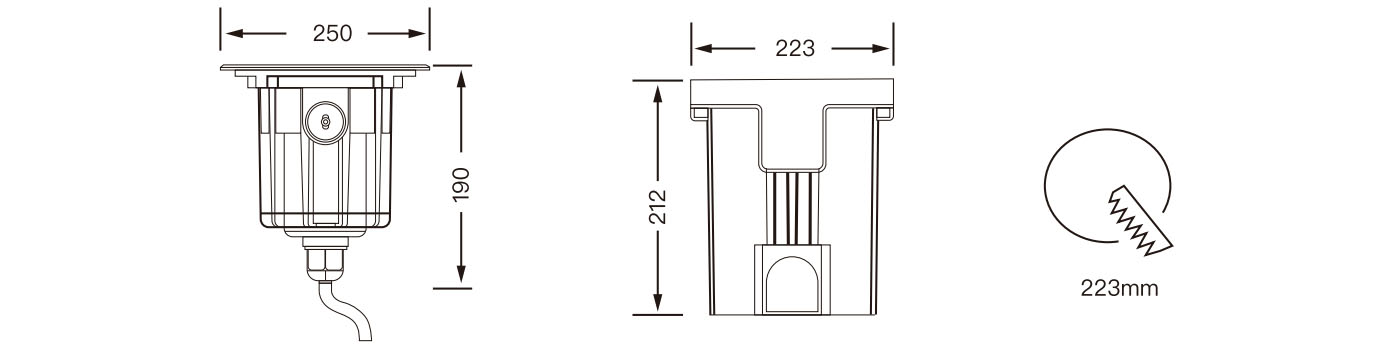

YH-D111616(图1)

ModelProduct CategoryWorking VoltageProduct PowerColor TemperatureLuminous AngleNumber of Light SourcesControl MethodLamp Body MaterialLamp Shade MaterialProtection Level
YH-D111616Underground light

DC24V

AC220V

30W

3000K

4000K

20°/30°

1pcs

The switch is always on

ADC12 die-cast aluminum

Ultra-white tempered glassIP67
