Home  >  Products  >  Flood Light
<
>
>
<

Flood Light

YH-T111017

Lamp body

ADC12 high-strength die-cast aluminum lamp body, the surface is sprayed with outdoor special sand grain weather-resistant imported powder


lens

PMMA optical lens, light transmittance up to 90%


Transparent material

Ultra-white 4mm tempered glass


Sealed structure

Structure waterproof or non-vulcanized colloid potting waterproof


Light Engine

Original brand imported light source, optional OSRAM, Cree, Philips, Seoul, etc.


Ambient temperature

-20℃~45℃


Frame

High-strength special aluminum


Electric wire

Corrosion resistant rubber wire 2X1mm², 3X1mm², 2X1+3X0.5mm²


Work style

Switch is always on, DMX512, Triac, PWM, 1-10V


Contact us

Product Details

Classic and fusion

traditional classic exterior design, which can be integrated with a variety of buildings

Structural waterproof

professional structural waterproof design, excellent outdoor protection performance

Light and utility

professional light distribution scheme design, ultra-white high-transmittance tempered glass

Heat dissipation and lifespan

The lamp body is made of high-quality ADC12 die-cast aluminum, which efficiently improves the heat dissipation performance

Special surface spraying

the surface is treated with a corrosion-resistant outdoor special spraying process

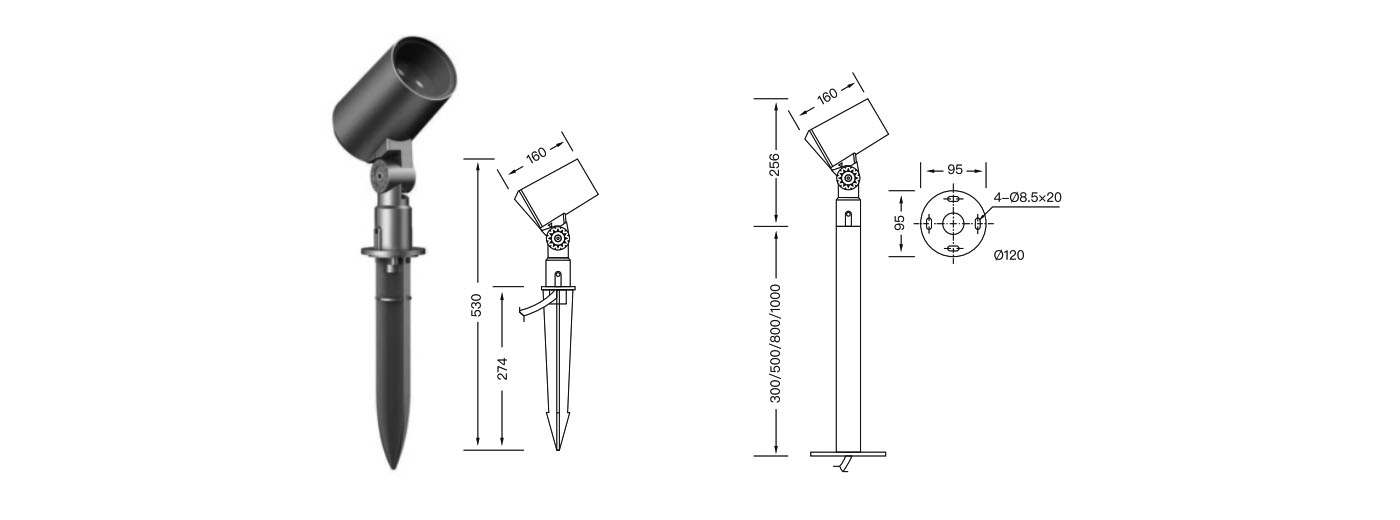

YH-T111017(图1)

ModelProduct CategoryWorking VoltageProduct PowerColor TemperatureLuminous AngleNumber of Light SourcesControl MethodLamp Body MaterialLamp Shade MaterialProtection Level
YH-T111017AFlood light

DC24V

AC220V

24W

3000K

4000K

RGB

RGBW

15°/20°/30°

40°/60°

6pcs

The switch is always on, external control DMX512

ADC12 die-cast aluminum

Ultra-white tempered glassIP66
YH-T111017B25W24°/36°/60°1pcs
