Linear Light

YH-L322122

Lamp body

All-metal 6063 high-quality aviation aluminum extrusion, surface anodizing treatment or spraying outdoor special sand grain weather resistant powder


Transparent material

Anti-ultraviolet anti-yellowing milky white PC cover


Sealed structure

Small molecule polyurethane high-density colloidal waterproofing


Light Engine

Original brand imported light source, optional OSRAM, Cree, Philips, Seoul, etc.


Ambient temperature

-20°C~45°C


Frame

Aluminum bracket or embedded buckle


Electric wire

Corrosion resistant rubber wire 2X1mm², 2X1+3X0.5mm²


Work style

Switch is always on, DMX512, Triac, PWM, 1-10V


Contact us

Product Details

Minimalism and integration

a minimalist appearance design adapted to modern aesthetics, perfectly integrated with a variety of buildings

Lightweight and convenient

Lightweight design and keep firm, classic hidden thread and back-out thread

Light and utility

patented light diffusion design, providing soft light

Heat dissipation and lifespan

The whole lamp is made of high-quality 6063 aviation aluminum, which efficiently improves the heat dissipation performance

Abundant brackets

stainless steel buckle bracket, side screw fastening bracket

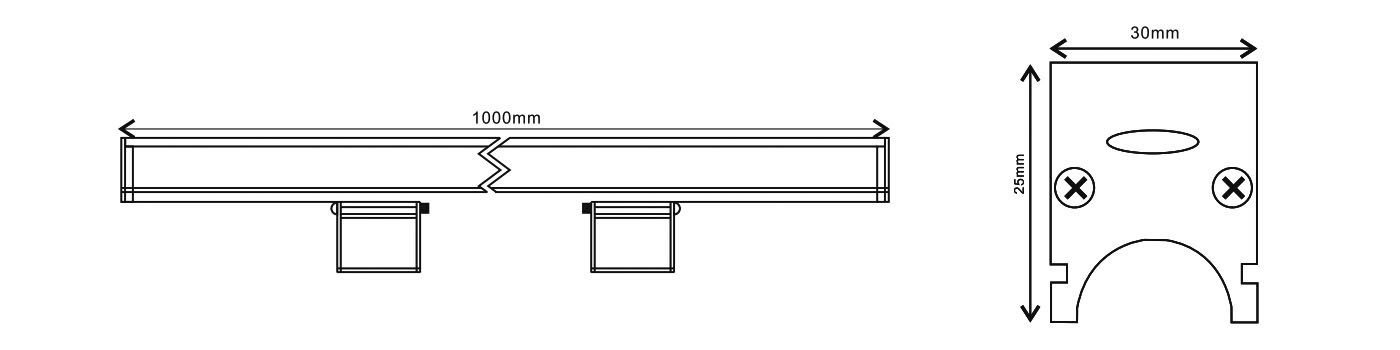

YH-L322122(图1)

ModelProduct CategoryWorking VoltageProduct PowerColor TemperatureLuminous AngleNumber of Light SourcesControl MethodLamp Body MaterialLamp Shade MaterialProtection Level
YH-L322122Linear lights

DC24V

12W

15W

3000K

4000K

RGB

RGBW

120°

48

The switch is always on, external control DMX512

6063 Aviation Aluminum

UV-resistant transparent PC cover

IP65
