Lamp body
6063 high-strength aviation aluminum extrusion, surface anodizing treatment or spraying outdoor special sand grain weather-resistant imported powder
lens
PMMA optical lens, light transmittance up to 90%
Transparent material
Ultra-white 4mm tempered glass
Sealed structure
Waterproof structure or water-proof vulcanized gel potting
Light Engine
Original brand imported light source, optional OSRAM, Cree, Philips, and others
Ambient temperature
-20℃~45℃
Frame
Special aluminum for high strength
Electric wire
Corrosion resistant rubber wire 2X1mm², 3X1mm², 2X1+3X0.5mm²
Work style
Switch is always on, DMX512, Triac, PWM, 1-10V
Contact us
the ultimate appearance design adapted to modern aesthetics, perfectly integrated with a variety of buildings
patented screwless and capless design, extreme outdoor protection performance
to achieve a neater and seamless splicing, reducing unnecessary accumulation of buildings
professional light distribution scheme design, ultra-white high-transmittance tempered glass
The whole lamp is made of high-quality 6063 aviation aluminum, which efficiently improves the heat dissipation performance

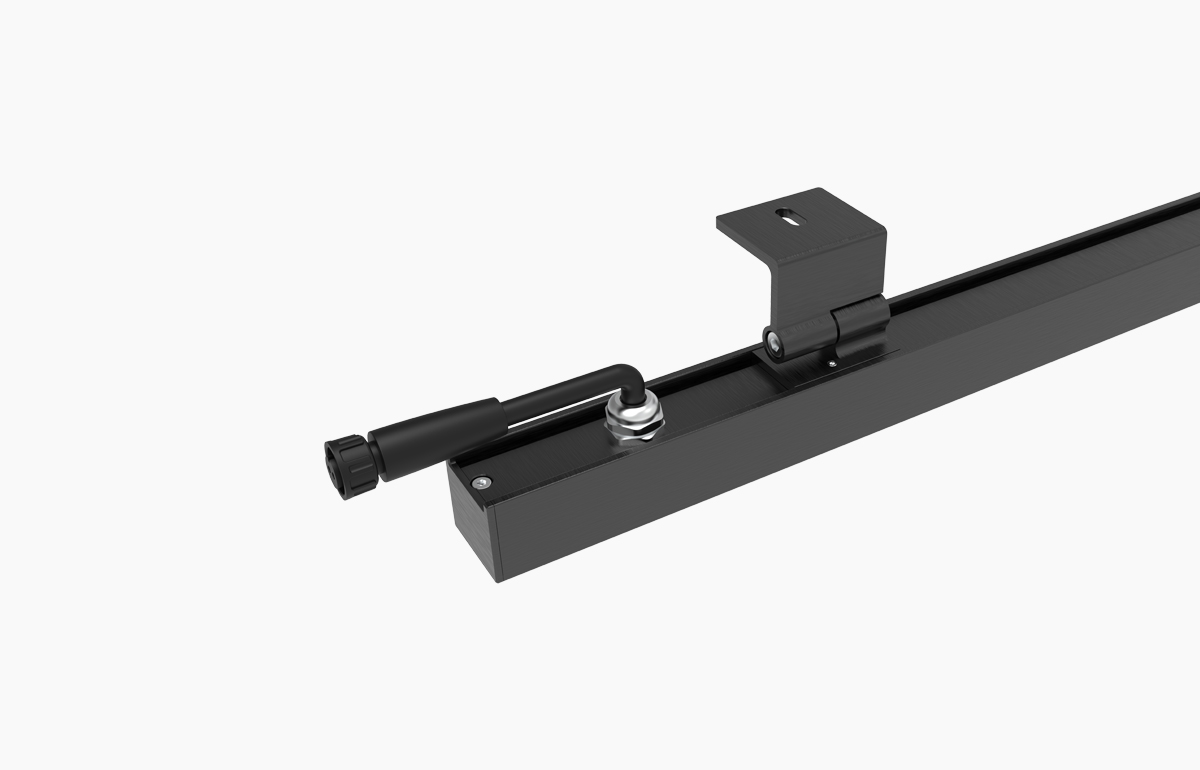

The bracket has damping and locking functions to provide stable performance and still elegant
| Model | Product Category | Working Voltage | Product Power | Color Temperature | Luminous Angle | Number of Light Sources | Control Method | Lamp Body Material | Lamp Shade Material | Protection Level |
| YH-X251011 | Wall washer | DC24V AC220V | 18W 24W | 3000K 4000K RGB RGBW | 10*60° 20*45° 10°/15° 30°/60° | 18 24 | The switch is always on, external control DMX512 | 6063 Aviation Aluminum | Ultra-white tempered glass | IP66 |
