Home  >  Products  >  Wall Washer
<
>
>
<

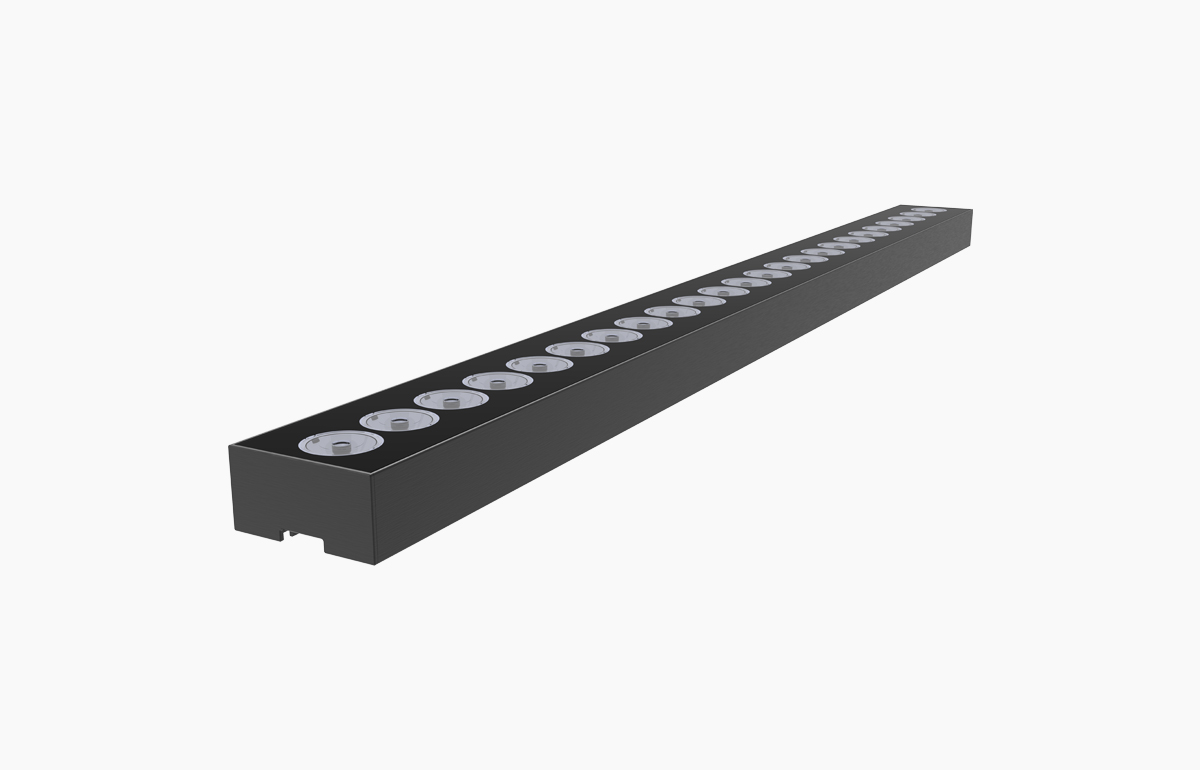

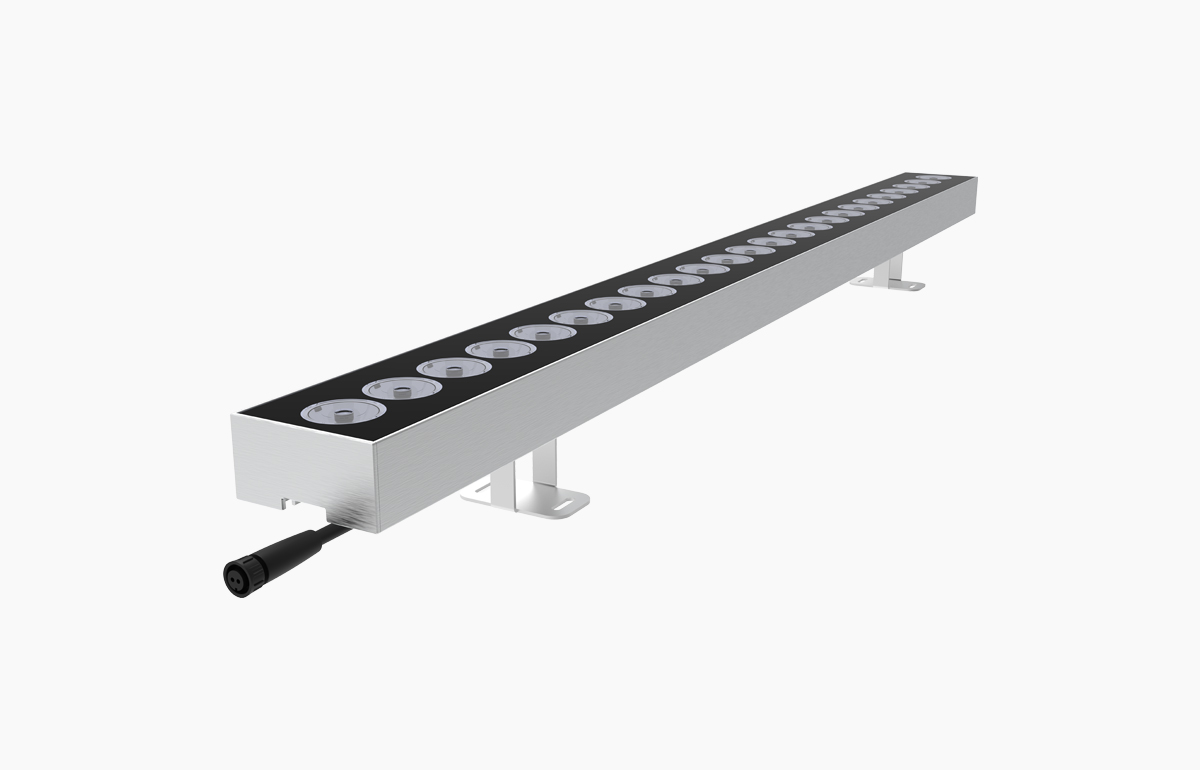

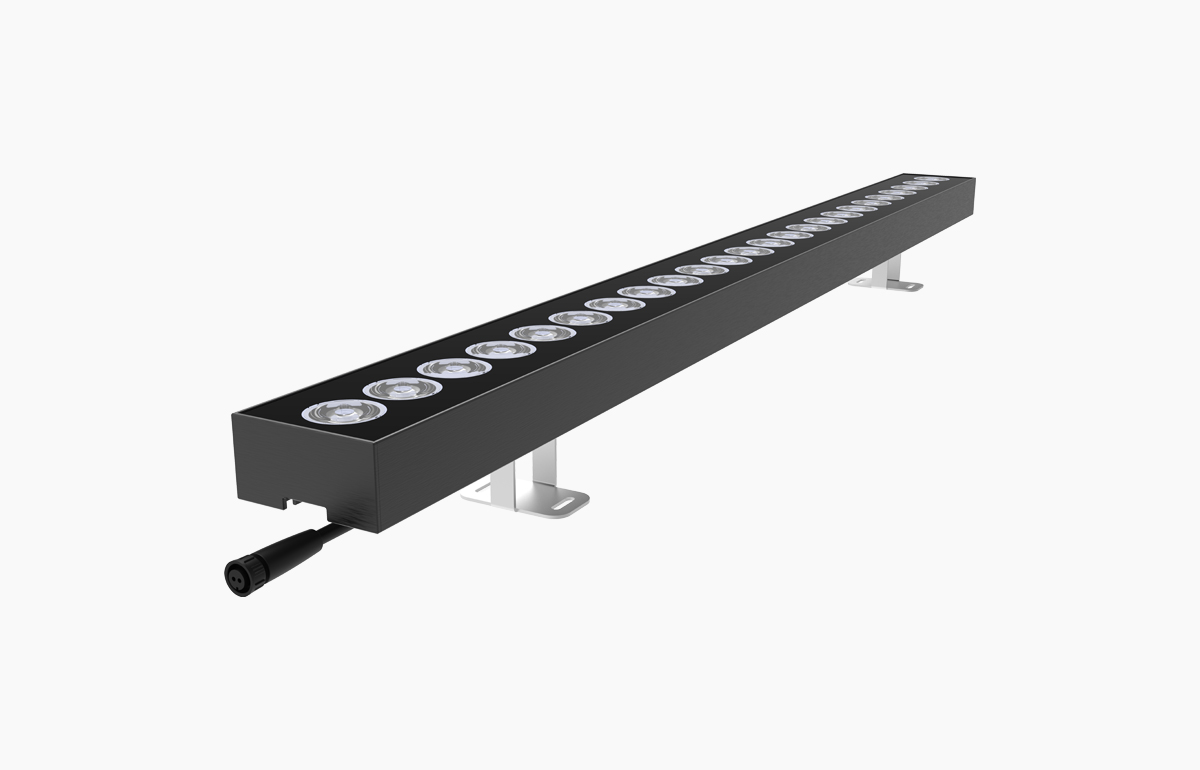

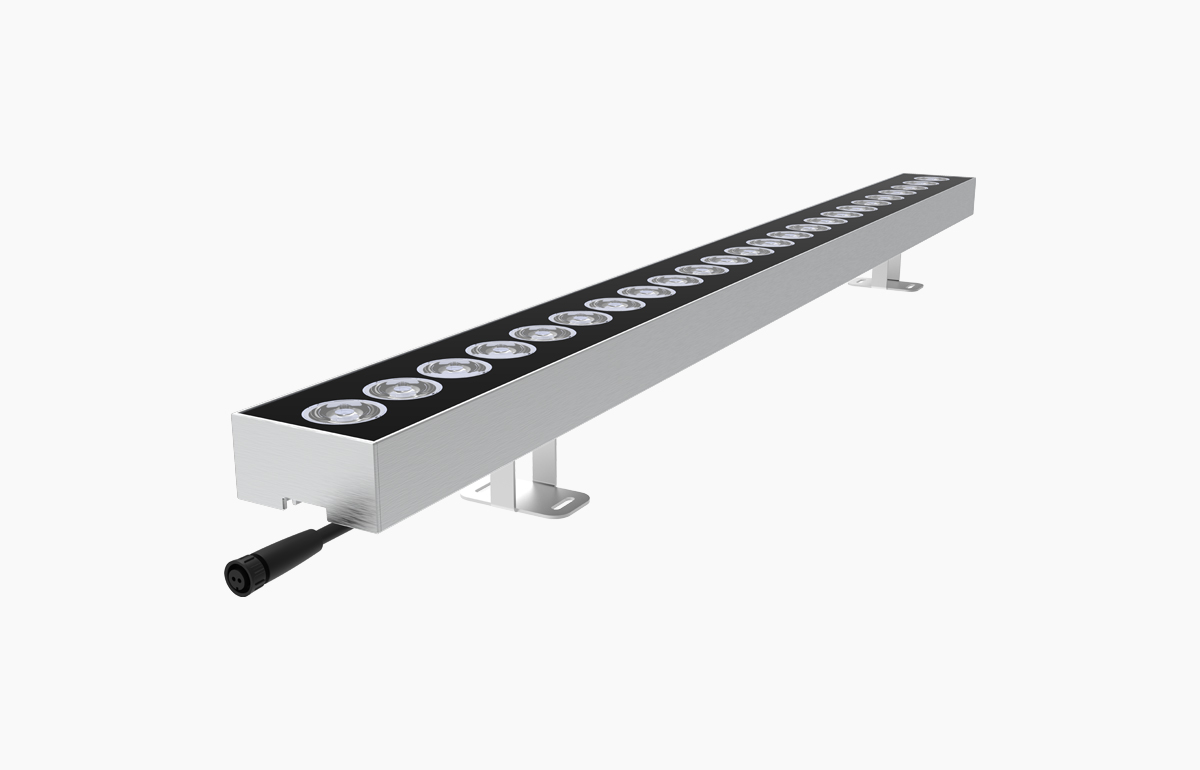

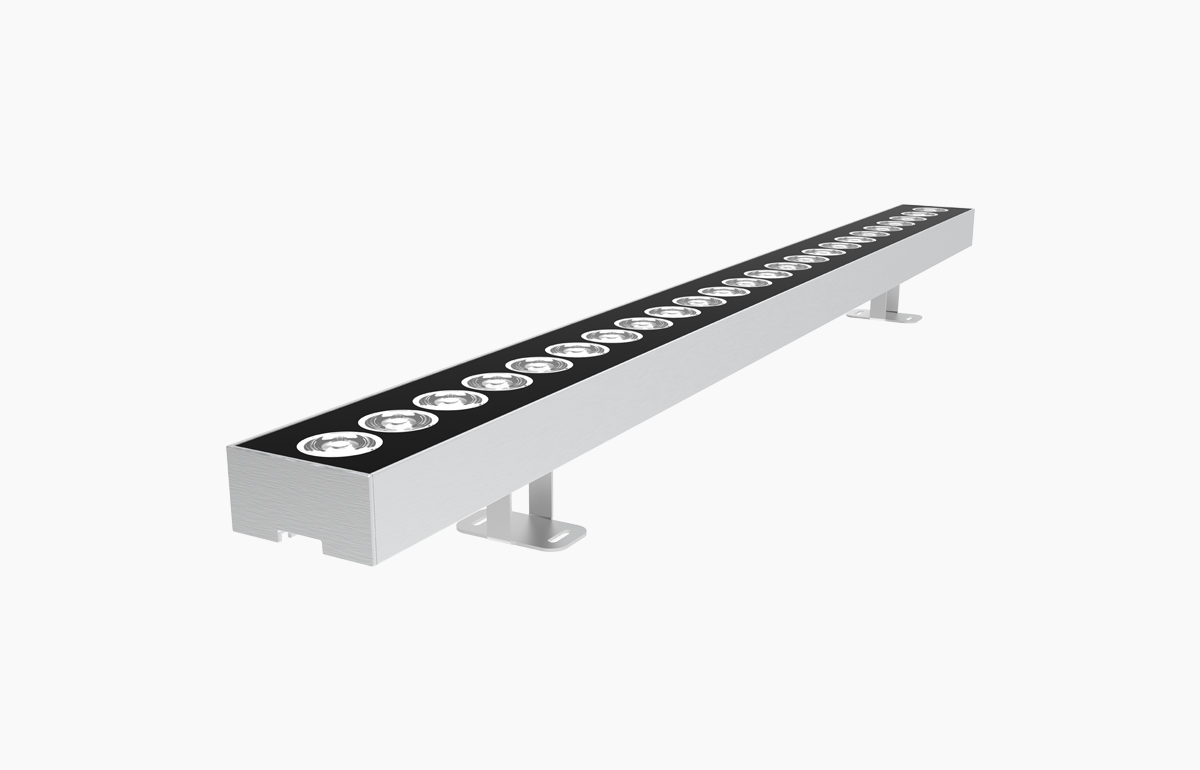

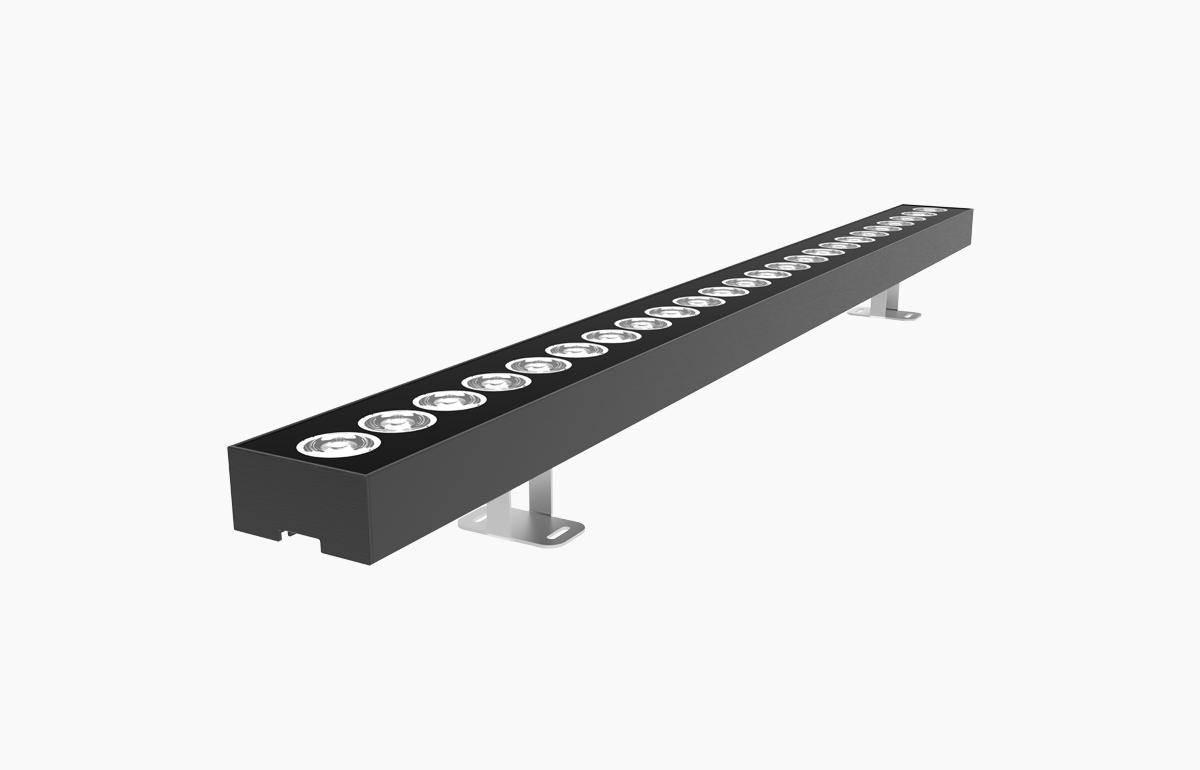

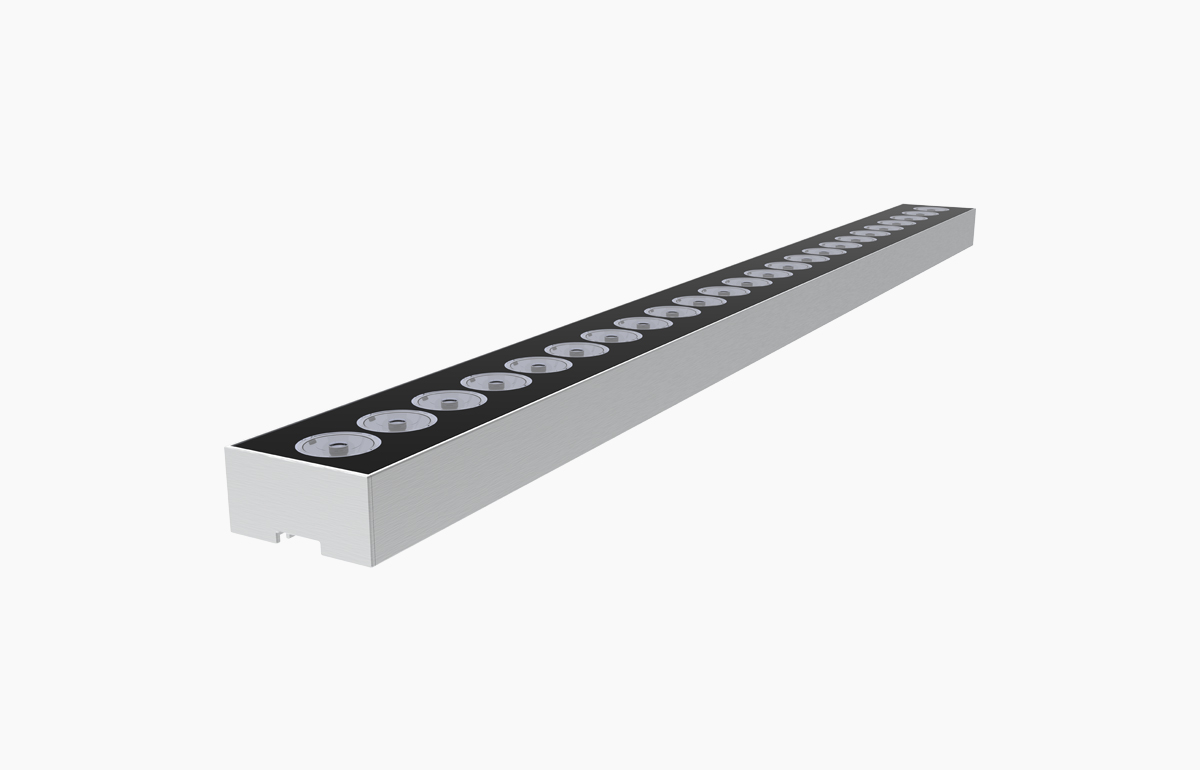

Wall Washer

YH-X251016

Lamp body

6063 high-strength aviation aluminum extrusion, surface anodizing treatment or spraying outdoor special sand grain weather-resistant imported powder


lens

PMMA optical lens, light transmittance up to 90%


Transparent material

Ultra-white 4mm tempered glass


Sealed structure

Waterproof structure or water-proof vulcanized gel potting


Light Engine

Original brand imported light source, optional OSRAM, Cree, Philips, and others


Ambient temperature

-20℃~45℃


Frame

Special aluminum for high strength


Electric wire

Corrosion resistant rubber wire 2X1mm², 3X1mm², 2X1+3X0.5mm²


Work style

Switch is always on, DMX512, Triac, PWM, 1-10V


Contact us

Product Details

Ultimate and fusion

the ultimate appearance design adapted to modern aesthetics, perfectly integrated with a variety of buildings

Patent and uniqueness

patented screwless and capless design, extreme outdoor protection performance

Semi-hidden outlet

to achieve a neater and seamless splicing, reducing unnecessary accumulation of buildings

Light and utility

professional light distribution scheme design, ultra-white high-transmittance tempered glass

Heat dissipation and lifespan

The whole lamp is made of high-quality 6063 aviation aluminum, which efficiently improves the heat dissipation performance

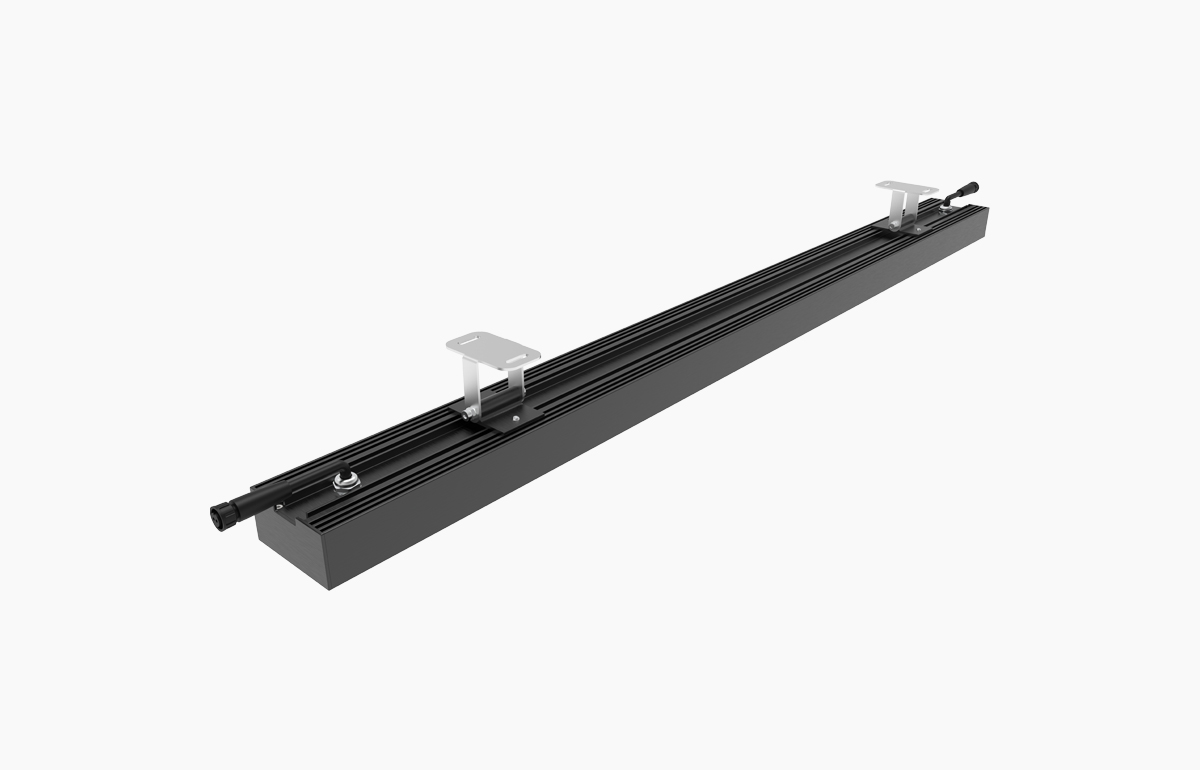

More sophisticated bracket

The bracket has damping and locking functions to provide stable performance and still elegant

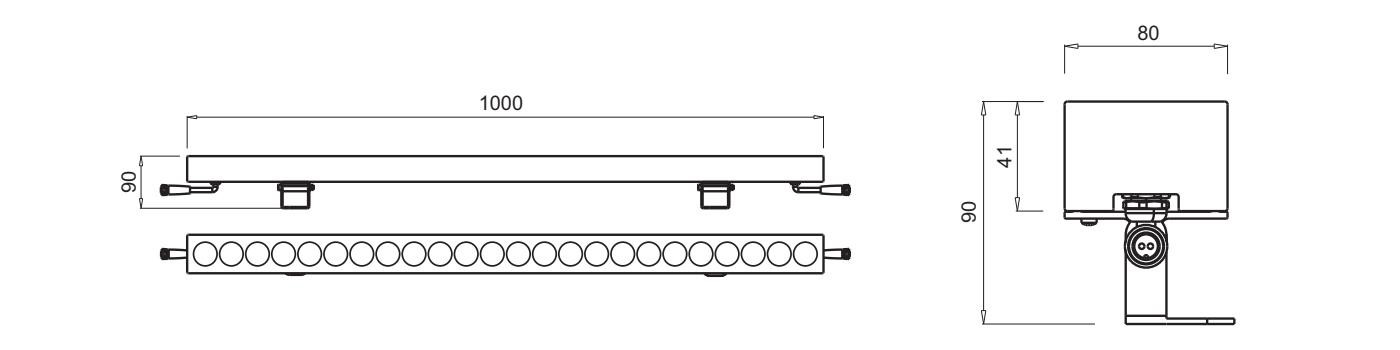

YH-X251016(图1)

ModelProduct CategoryWorking VoltageProduct PowerColor TemperatureLuminous AngleNumber of Light SourcesControl MethodLamp Body MaterialLamp Shade MaterialProtection Level
YH-X251016Wall washer

AC220V

150W

3000K

4000K

RGB

RGBW

3°8°

10°/15°

30°/60°

24

The switch is always on, external control DMX512

6063 Aviation Aluminum

Ultra-white tempered glassIP66
