Point Light Source

YH-G440804

Lamp body material

One-piece molding process, high protection level, using thickened high-quality flame-retardant transparent blended modified engineering plastics


Beam angle

Large light-emitting angle, conducive to viewing from multiple angles


Safety level

Flame-retardant grade V-0, class Ⅲ


Sealed structure

Non-vulcanized colloid potting and waterproofing, achieving IP68 waterproof level


Light Engine

Original brand imported light source, optional OSRAM, Cree, Philips, etc.


Ambient temperature

-20℃~45℃


Installation method

Aluminum card slot/steel buckle/hole installation/screw fixation


power line

Weather resistant wire 2X1mm², 2X0.75+3X0.5mm²


Way of working

The switch is always on, DMX512


Contact us

Product Details

Professional and stable performance, suitable for various engineering projects

One-piece molding design, secondary packaging process, high-performance waterproof, up to IP68 level

High-quality flame-retardant co-plastic lamp body, UV resistant, yellowing resistant and waterproof potting glue

Excellent heat dissipation performance, can achieve a long service life of the lamp

Using ultra-high-brightness full-color light source, a large angle supports a larger viewing angle

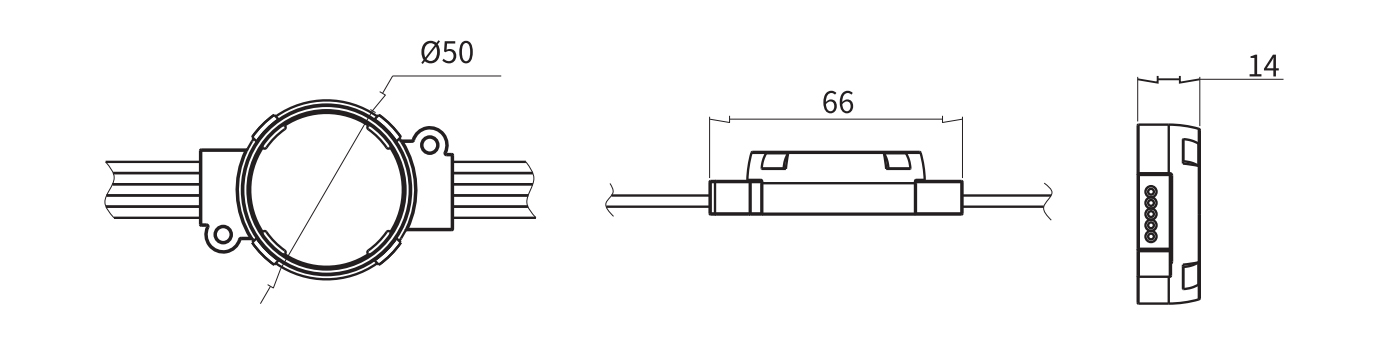

YH-G440804(图1)

ModelProduct CategoryWorking VoltageProduct PowerColor TemperatureLuminous AngleNumber of Light SourcesControl MethodLamp Body MaterialLamp Shade MaterialProtection Level
YH-G440804Point light source

DC24V

1.92W

3000K

4000K

RGB

120°

10

The switch is always on, external control DMX512

Imported flame-retardant co-plastics

Imported high permeability plasticIP68
